HiCAD: Parametric CAD Generation via CMTA and SARL

Abstract

Parametric CAD modeling from human intent remains challenging, particularly during the conceptual design stage, where design goals are expressed through incomplete and unstructured modalities (e.g., hand-drawn sketches and textual descriptions). In this work, we rethink the human intent-to-CAD pipeline and propose a unified method that directly maps multi-level human intents to executable codes, without assuming the prior existence of target CAD models.

To support our study, we construct HiCAD, the first large-scale dataset aligning hand-drawn sketches, textual descriptions, and parametric CAD codes. Based on this, we introduce HiCAD, a two-stage framework comprising Cooperative Multi-Task Alignment (CMTA) to bridge the representational gap between heterogeneous inputs, and Spatial-Aware Reinforcement Learning (SARL) to enforce geometric and topological consistency.

Extensive experiments demonstrate that our method significantly outperforms existing baselines across multiple tasks, validating its effectiveness and robustness in transforming heterogeneous human intents into high-fidelity parametric CAD models.

Core Challenges

Asymmetric Alignment

A substantial representational gap exists between the sparse ambiguity of hand-drawn sketches and the abstract nature of textual descriptions.

Logical Consistency

CAD codes are highly sensitive to syntax and geometric topology — minor sequence deviations cause compilation failures or geometric distortions.

Sparse Feedback

In complex parametric modeling spaces, traditional cross-entropy loss struggles to capture geometric fidelity in 3D space.

Method

HiCAD: A Two-Stage Framework for Human Intent-to-CAD Generation

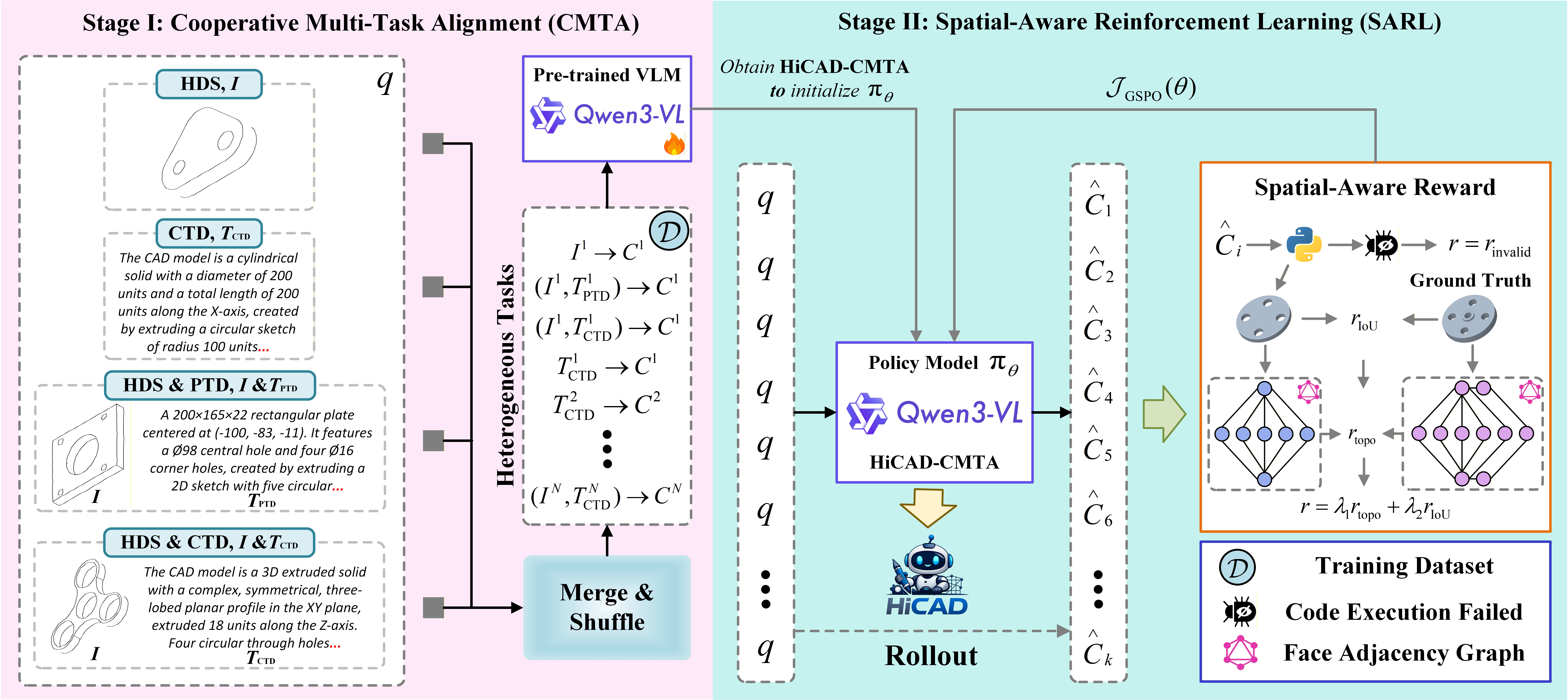

Figure 2. Overview of the HiCAD framework. Stage I (CMTA) fine-tunes a VLM across four tasks simultaneously. Stage II (SARL) applies spatial-aware reinforcement learning with topological and geometric consistency rewards.

Stage I

Cooperative Multi-Task Alignment

CMTA initializes from a pre-trained VLM (Qwen3-VL-4B-Instruct) and fine-tunes it across all four tasks simultaneously. By interleaving data from diverse tasks, it maps heterogeneous human intents into a unified modeling space, enabling positive transfer across modalities.

Objective: Minimize cross-entropy between ground truth and predicted CadQuery tokens.

HDS → CAD CTD → CAD HDS+PTD → CAD HDS+CTD → CAD

Stage II

Spatial-Aware Reinforcement Learning

SARL leverages Group Sequence Policy Optimization (GSPO) for stable training. The spatial-aware reward jointly evaluates topological consistency (via graph edit distance on B-Rep face adjacency graphs) and geometric consistency (via volumetric IoU).

Key advantage: Sequence-level importance ratios reduce gradient variance vs. token-level GRPO.

r = λ₁·r_topo + λ₂·r_IoU r_topo = 1 / (1 + GED(G_gt, G_pred))

HiCAD Dataset

The first large-scale benchmark aligning hand-drawn sketches, textual descriptions, and parametric CAD codes

0 Training Samples

0 Validation Samples

0 Test Samples

0 Aligned Modalities

✏️

Hand-Drawn Sketches

Synthetic sketches generated via a differentiable pipeline using OpenCascade edge extraction + jitter augmentation (512×512 px). 100 real human-drawn sketches for generalization evaluation.

Synthetic Human-Drawn

📝

Textual Descriptions

Generated by Qwen3-VL-32B using CadQuery code + rendered image + geometric attributes. Both Complete (CTD) and Partial (PTD) descriptions — the latter simulates incomplete user intent.

Complete (CTD) Partial (PTD)

⚙️

CadQuery Code

Executable Python scripts based on CadQuery, derived from the DeepCAD dataset via CAD-Recode. Supports B-Rep and mesh outputs, compatible with industrial STEP standard.

B-Rep / Mesh STEP Export

Dataset Construction Pipeline

🏗️

DeepCAD

Source Models

→

⚙️

CadQuery Code

via CAD-Recode

→

✏️

HDS Generation

HLR + Jitter

→

🤖

CTD Generation

Qwen3-VL-32B

→

🎯

HiCAD Dataset

90K+ Samples

Experimental Results

HiCAD consistently outperforms all baselines across all tasks and metrics

Method	HDS-to-CAD				CTD-to-CAD				HDS & PTD-to-CAD				HDS & CTD-to-CAD
Method	IoU↑	IR↓	M.CD↓	Med.CD↓	IoU↑	IR↓	M.CD↓	Med.CD↓	IoU↑	IR↓	M.CD↓	Med.CD↓	IoU↑	IR↓	M.CD↓	Med.CD↓
GPT-4o general	20.49	7.00	53.52	35.31	47.64	20.80	25.86	5.93	37.41	16.60	38.41	16.93	51.52	17.20	22.57	4.50
GPT-5-mini general	9.51	16.00	67.53	53.23	53.61	23.60	21.87	3.98	38.20	9.80	33.39	13.08	52.96	14.40	19.58	3.42
Gemini-2.5 general	23.72	19.60	44.70	23.51	52.94	35.80	28.22	4.95	40.87	28.20	34.85	11.48	54.01	23.20	26.09	3.27
Claude-3.7 general	19.48	15.80	49.51	31.70	44.21	28.60	30.11	6.74	34.11	22.20	38.86	18.68	46.81	26.20	28.99	6.91
Qwen-VL-Max general	22.21	14.20	44.58	23.17	46.46	54.20	28.83	6.21	36.86	47.20	35.06	16.59	52.73	53.20	23.77	4.48
CAD-Coder† specialized	48.89	3.96	10.56	2.09	60.08	3.46	10.90	0.70	56.38	4.11	9.47	1.32	64.61	3.26	7.60	0.42
Cadrille† specialized	66.54	9.41	7.03	0.57	67.19	6.82	12.27	0.43	66.86	8.12	9.41	0.58	72.56	7.57	7.75	0.30
🏆 HiCAD (Ours)†	69.49	0.37	4.40	0.46	74.27	0.17	6.91	0.29	76.03	0.42	3.91	0.30	80.90	0.42	3.04	0.22

† Trained on HiCAD dataset. CD values multiplied by 10³. Green = best, underline = second best.

Method	HDS-to-CAD		HDS & CTD-to-CAD
Method	IoU↑	IR↓	IoU↑	IR↓
GPT-4o	7.93	20.00	18.78	10.00
Gemini-2.5	9.52	36.00	20.28	42.00
Claude-3.7	8.10	66.00	23.71	56.00
CAD-Coder†	35.72	8.00	54.57	3.00
Cadrille†	17.74	87.00	59.20	9.00
🏆 HiCAD (Ours)†	43.27	3.00	73.37	0.00

Evaluated on 100 real sketches drawn by human volunteers. HiCAD achieves 0% invalid rate on HDS+CTD task.

Configuration	HDS-to-CAD		CTD-to-CAD		HDS+PTD-to-CAD		HDS+CTD-to-CAD
	IoU↑	IR↓	IoU↑	IR↓	IoU↑	IR↓	IoU↑	IR↓
ST-SFT (Vanilla)	63.84	1.27	71.01	1.49	66.61	1.44	74.35	1.97
+ CMTA	66.87	1.20	71.90	0.95	72.39	1.07	79.28	1.10
+ CMTA + SARL (Full)	69.09	0.22	73.79	0.30	76.03	0.42	80.90	0.42

↑ CMTA Effect

Multi-task alignment improves IoU by up to +5.78% (HDS+PTD task) over single-task SFT baseline.

↑ SARL Effect

SARL reduces invalid rate to 0.22–0.42% and further boosts IoU by eliminating geometric inconsistencies.

25×

Lower Invalid Rate

IR reduced from 9.41% to 0.37% vs. Cadrille on HDS-to-CAD task

+14.4%

IoU vs. Cadrille

Absolute improvement on HDS+CTD task (72.56% → 80.90%)

+25.5%

IoU on Real Sketches

HiCAD 43.27% vs. CAD-Coder 35.72% on real human-drawn inputs

BibTeX

If you find our work useful, please consider citing:

@inproceedings{zhang2026hicad,
  title     = {Rethinking Human Intent-to-CAD: Parametric CAD Model Generation via Cooperative Multi-Task Alignment and Spatial-Aware Reinforcement Learning},
  author    = {Zhang, Qingwang and Li, Jiahao and Zhou, Xiangdong},
  booktitle = {Proceedings of the 43rd International Conference on Machine Learning},
  series    = {PMLR 306},
  year      = {2026},
  address   = {Seoul, South Korea},
}
